element commandSet

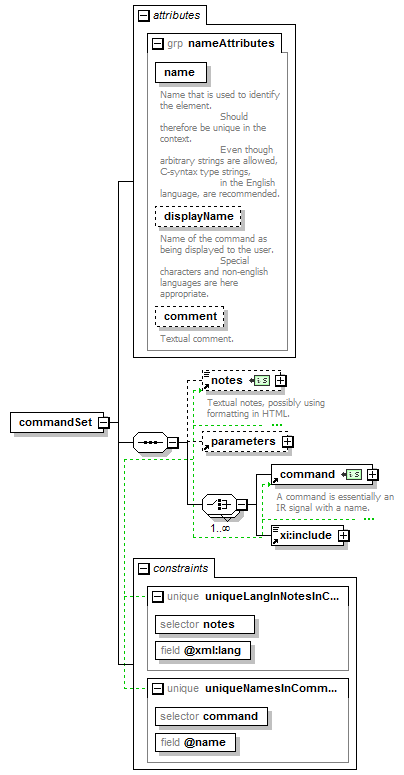

diagram
namespace	http://www.harctoolbox.org/Girr
properties	content  complex
children	notes parameters command xi:include
used by	element  remote
attributes	Name   Type   Use   Default   Fixed   annotation name xs:string required         documentation Name that is used to identify the element.                     Should therefore be unique in the context.                     Even though arbitrary strings are allowed, C-syntax type strings,                     in the English language, are recommended. displayName xs:string          documentation Name of the command as being displayed to the user.                     Special characters and non-english languages are here appropriate. comment xs:string          documentation Textual comment.
identity constraints	Name   Refer   Selector   Field(s)   unique   uniqueLangInNotesInCommandSet      notes   @xml:lang   unique   uniqueNamesInCommandSet      command   @name
source	<xs:element name="commandSet">   <xs:complexType>     <xs:sequence>       <xs:element ref="notes" minOccurs="0"/>       <xs:element ref="parameters" minOccurs="0"/>       <xs:choice maxOccurs="unbounded">         <xs:element ref="command"/>         <xs:element ref="xi:include"/>       </xs:choice>     </xs:sequence>     <xs:attributeGroup ref="nameAttributes"/>   </xs:complexType>   <xs:unique name="uniqueLangInNotesInCommandSet">     <xs:selector xpath="notes"/>     <xs:field xpath="@xml:lang"/>   </xs:unique>   <xs:unique name="uniqueNamesInCommandSet">     <xs:selector xpath="command"/>     <xs:field xpath="@name"/>   </xs:unique> </xs:element>
