element remote

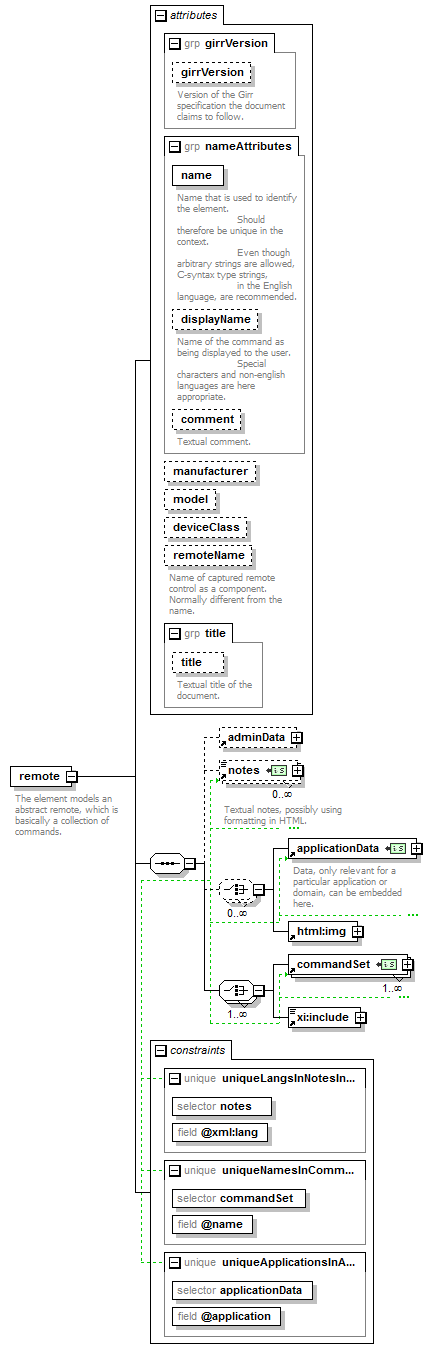

diagram
namespace	http://www.harctoolbox.org/Girr
properties	content  complex
children	adminData notes applicationData img commandSet xi:include
used by	element  remotes
attributes	Name   Type   Use   Default   Fixed   annotation girrVersion xs:string       1.0   documentation Version of the Girr specification the document claims to follow. name xs:string required         documentation Name that is used to identify the element.                     Should therefore be unique in the context.                     Even though arbitrary strings are allowed, C-syntax type strings,                     in the English language, are recommended. displayName xs:string          documentation Name of the command as being displayed to the user.                     Special characters and non-english languages are here appropriate. comment xs:string          documentation Textual comment. manufacturer xs:string          model xs:string          deviceClass xs:string          remoteName xs:string          documentation Name of captured remote control as a component. Normally different from the name. title xs:string          documentation Textual title of the document.
identity constraints	Name   Refer   Selector   Field(s)   unique   uniqueLangsInNotesInRemote      notes   @xml:lang   unique   uniqueNamesInCommandSets      commandSet   @name   unique   uniqueApplicationsInApplicationData      applicationData   @application
annotation	documentation The element models an abstract remote, which is basically a collection of commands.
source	<xs:element name="remote">   <xs:annotation>     <xs:documentation>The element models an abstract remote, which is basically a collection of commands.</xs:documentation>   </xs:annotation>   <xs:complexType>     <xs:sequence>       <xs:element ref="adminData" minOccurs="0"/>       <xs:element ref="notes" minOccurs="0" maxOccurs="unbounded"/>       <xs:choice minOccurs="0" maxOccurs="unbounded">         <xs:element ref="applicationData"/>         <xs:element ref="html:img"/>       </xs:choice>       <xs:choice maxOccurs="unbounded">         <xs:element ref="commandSet" maxOccurs="unbounded"/>         <xs:element ref="xi:include"/>       </xs:choice>     </xs:sequence>     <xs:attributeGroup ref="girrVersion"/>     <xs:attributeGroup ref="nameAttributes"/>     <xs:attribute name="manufacturer" type="xs:string"/>     <xs:attribute name="model" type="xs:string"/>     <xs:attribute name="deviceClass" type="xs:string"/>     <xs:attribute name="remoteName" type="xs:string">       <xs:annotation>         <xs:documentation>Name of captured remote control as a component. Normally different from the name.</xs:documentation>       </xs:annotation>     </xs:attribute>     <xs:attributeGroup ref="title"/>   </xs:complexType>   <xs:unique name="uniqueLangsInNotesInRemote">     <xs:selector xpath="notes"/>     <xs:field xpath="@xml:lang"/>   </xs:unique>   <xs:unique name="uniqueNamesInCommandSets">     <xs:selector xpath="commandSet"/>     <xs:field xpath="@name"/>   </xs:unique>   <xs:unique name="uniqueApplicationsInApplicationData">     <xs:selector xpath="applicationData"/>     <xs:field xpath="@application"/>   </xs:unique> </xs:element>

attribute remote/@manufacturer

type	xs:string
properties	isRef  0
source	<xs:attribute name="manufacturer" type="xs:string"/>

attribute remote/@model

type	xs:string
properties	isRef  0
source	<xs:attribute name="model" type="xs:string"/>

attribute remote/@deviceClass

type	xs:string
properties	isRef  0
source	<xs:attribute name="deviceClass" type="xs:string"/>

attribute remote/@remoteName

type	xs:string
properties	isRef  0
annotation	documentation Name of captured remote control as a component. Normally different from the name.
source	<xs:attribute name="remoteName" type="xs:string">   <xs:annotation>     <xs:documentation>Name of captured remote control as a component. Normally different from the name.</xs:documentation>   </xs:annotation> </xs:attribute>
