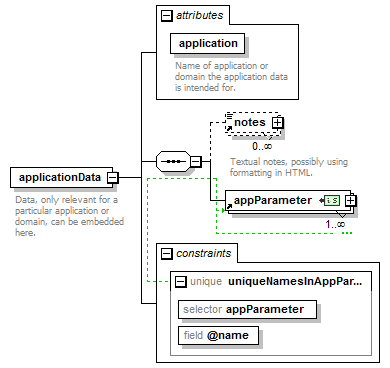

diagram | |||||||||||||||
namespace | http://www.harctoolbox.org/Girr | ||||||||||||||
properties |
|
||||||||||||||
children | notes appParameter | ||||||||||||||
used by |
|
||||||||||||||
attributes |
|
||||||||||||||
identity constraints |
|
||||||||||||||
annotation |
|
||||||||||||||
source | <xs:element name="applicationData"> <xs:annotation> <xs:documentation>Data, only relevant for a particular application or domain, can be embedded here.</xs:documentation> </xs:annotation> <xs:complexType> <xs:sequence> <xs:element ref="notes" minOccurs="0" maxOccurs="unbounded"/> <xs:element ref="appParameter" maxOccurs="unbounded"/> </xs:sequence> <xs:attribute name="application" type="xs:string" use="required"> <xs:annotation> <xs:documentation>Name of application or domain the application data is intended for.</xs:documentation> </xs:annotation> </xs:attribute> </xs:complexType> <xs:unique name="uniqueNamesInAppParameter"> <xs:selector xpath="appParameter"/> <xs:field xpath="@name"/> </xs:unique> </xs:element> |
type | xs:string | ||||
properties |
|
||||
annotation |
|
||||
source | <xs:attribute name="application" type="xs:string" use="required"> <xs:annotation> <xs:documentation>Name of application or domain the application data is intended for.</xs:documentation> </xs:annotation> </xs:attribute> |
