complexType value-name

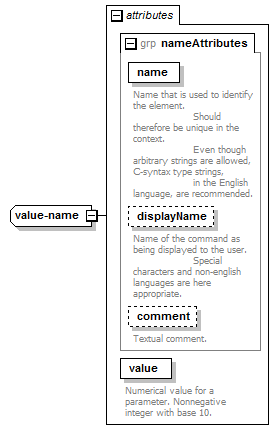

diagram
namespace	http://www.harctoolbox.org/Girr
used by	element  parameter
attributes	Name   Type   Use   Default   Fixed   annotation name xs:string required         documentation Name that is used to identify the element.                     Should therefore be unique in the context.                     Even though arbitrary strings are allowed, C-syntax type strings,                     in the English language, are recommended. displayName xs:string          documentation Name of the command as being displayed to the user.                     Special characters and non-english languages are here appropriate. comment xs:string          documentation Textual comment. value parameterValue required         documentation Numerical value for a parameter. Nonnegative integer with base 10.
source	<xs:complexType name="value-name">   <xs:attributeGroup ref="nameAttributes"/>   <xs:attribute name="value" type="parameterValue" use="required">     <xs:annotation>       <xs:documentation>Numerical value for a parameter. Nonnegative integer with base 10.</xs:documentation>     </xs:annotation>   </xs:attribute> </xs:complexType>

attribute value-name/@value

type	parameterValue
properties	isRef  0 use  required
facets	Kind  Value  annotation  pattern  0x[0-9A-Fa-f]+|[0-9]+
annotation	documentation Numerical value for a parameter. Nonnegative integer with base 10.
source	<xs:attribute name="value" type="parameterValue" use="required">   <xs:annotation>     <xs:documentation>Numerical value for a parameter. Nonnegative integer with base 10.</xs:documentation>   </xs:annotation> </xs:attribute>
