IrWidget.h File Reference

#include <Arduino.h>
#include "IrReader.h"

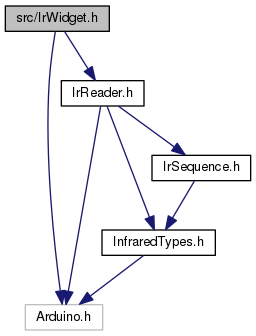

Include dependency graph for IrWidget.h:

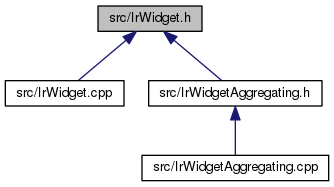

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	IrWidget
	Base class for classes based upon ICP pins capture. More...

Macros
#define	ENABLE_PULL_UP
#define	USE_PRESCALER_FACTOR_8   1
#define	CAPTURE_PRESCALER_SETTING   (_BV(CAT3(CS, CAP_TIM, 1)))
#define	CAPTURE_PRESCALER_BITS   (3)
#define	CAPTURE_PRESCALER_FACTOR   (_BV(CAPTURE_PRESCALER_BITS))
#define	CAP_PORT   B
#define	CAP_PIN   0
#define	CAP_TIM   1
#define	CAP_TIM_OC   A
#define	cbi(sfr, bit)   (_SFR_BYTE(sfr) &= ~_BV(bit))
#define	sbi(sfr, bit)   (_SFR_BYTE(sfr) |= _BV(bit))
#define	__CAT2(base, portname)   base##portname
#define	CAT2(prefix, num)   __CAT2(prefix, num)
#define	__CAT3(prefix, num, postfix)   prefix##num##postfix
#define	CAT3(prefix, num, postfix)   __CAT3(prefix, num, postfix)

Macro Definition Documentation

#define __CAT2	(		base,
			portname
	)		base##portname

Definition at line 176 of file IrWidget.h.

#define __CAT3	(		prefix,
			num,
			postfix
	)		prefix##num##postfix

Definition at line 178 of file IrWidget.h.

#define CAP_PIN   0

Definition at line 166 of file IrWidget.h.

#define CAP_PORT   B

Definition at line 165 of file IrWidget.h.

#define CAP_TIM   1

Definition at line 167 of file IrWidget.h.

#define CAP_TIM_OC   A

Definition at line 168 of file IrWidget.h.

#define CAPTURE_PRESCALER_BITS   (3)

Definition at line 112 of file IrWidget.h.

#define CAPTURE_PRESCALER_FACTOR   (_BV(CAPTURE_PRESCALER_BITS))

Definition at line 117 of file IrWidget.h.

#define CAPTURE_PRESCALER_SETTING   (_BV(CAT3(CS, CAP_TIM, 1)))

Definition at line 111 of file IrWidget.h.

#define CAT2	(		prefix,
			num
	)		__CAT2(prefix, num)

Definition at line 177 of file IrWidget.h.

#define CAT3	(		prefix,
			num,
			postfix
	)		__CAT3(prefix, num, postfix)

Definition at line 179 of file IrWidget.h.

#define cbi	(		sfr,
			bit
	)		(_SFR_BYTE(sfr) &= ~_BV(bit))

Definition at line 174 of file IrWidget.h.

#define ENABLE_PULL_UP

Definition at line 33 of file IrWidget.h.

#define sbi	(		sfr,
			bit
	)		(_SFR_BYTE(sfr) |= _BV(bit))

Definition at line 175 of file IrWidget.h.

#define USE_PRESCALER_FACTOR_8   1

Definition at line 38 of file IrWidget.h.
