IrDecoder Class Reference

Abstract base class for all decoder classes. More...

#include <IrDecoder.h>

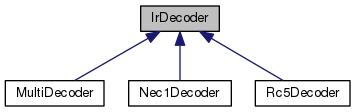

Inheritance diagram for IrDecoder:

Public Member Functions
	IrDecoder ()
virtual	~IrDecoder ()
virtual const char *	getDecode () const =0
	Returns a textual description the decode for human consumption. More...
virtual boolean	isValid () const
	Returns true if the decode was successful. More...
boolean	printDecode (Stream &stream) const
	If valid, prints the decode to the stream. More...

Protected Member Functions
void	setValid (bool valid_)

Static Protected Member Functions
static boolean	isEnding (microseconds_t duration)
	Tests if the argument is large enough to be considered an ending of a decodable signal. More...

Static Protected Attributes
static const int	invalid = -1

Detailed Description

Abstract base class for all decoder classes.

Definition at line 9 of file IrDecoder.h.

Constructor & Destructor Documentation

IrDecoder::IrDecoder ( )

inline

Definition at line 11 of file IrDecoder.h.

virtual IrDecoder::~IrDecoder ( )

inlinevirtual

Definition at line 15 of file IrDecoder.h.

Member Function Documentation

virtual const char* IrDecoder::getDecode ( ) const

pure virtual

Returns a textual description the decode for human consumption.

Returns

decode as text.

Implemented in Nec1Decoder, Rc5Decoder, and MultiDecoder.

static boolean IrDecoder::isEnding ( microseconds_t  duration )

inlinestaticprotected

Tests if the argument is large enough to be considered an ending of a decodable signal.

Parameters

duration

time to be tested

Returns

true if the duration is long enough

Definition at line 57 of file IrDecoder.h.

virtual boolean IrDecoder::isValid ( ) const

inlinevirtual

Returns true if the decode was successful.

Returns

validity

Definition at line 27 of file IrDecoder.h.

boolean IrDecoder::printDecode ( Stream &  stream ) const

inline

If valid, prints the decode to the stream.

Parameters

stream

where the output is generated

Returns

success status

Definition at line 36 of file IrDecoder.h.

void IrDecoder::setValid ( bool  valid_ )

inlineprotected

Definition at line 48 of file IrDecoder.h.

Member Data Documentation

const int IrDecoder::invalid = -1

staticprotected

Definition at line 47 of file IrDecoder.h.

---

The documentation for this class was generated from the following file:

• src/IrDecoder.h
