IrReader Class Reference

Abstract base class for all IR readers, capturing or receiving. More...

#include <IrReader.h>

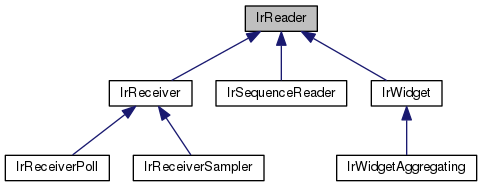

Inheritance diagram for IrReader:

Public Member Functions
virtual void	reset ()
virtual void	enable ()
	Start reception of IR data. More...
virtual void	disable ()
	Stop reception of IR data. More...
virtual void	receive ()=0
	Convenience function: enable, wait until data is collected or timeout has occured, disable. More...
virtual boolean	isReady () const =0
	Returns true if there is collected data. More...
virtual size_t	getDataLength () const =0
	Returns the number of collected durations. More...
virtual microseconds_t	getDuration (unsigned int index) const =0
	Returns the index-th duration, if possible. More...
virtual void	dump (Stream &stream) const
	Prints a textual representation of the received data to the Stream supplied. More...
IrSequence *	toIrSequence () const
	Generates an IrSequence from the IrReader. More...
virtual boolean	isEmpty () const
virtual void	setEndingTimeout (milliseconds_t timeOut)
virtual milliseconds_t	getEndingTimeout () const
virtual void	setBeginningTimeout (milliseconds_t timeOut)
virtual milliseconds_t	getBeginningTimeout () const
unsigned int	getBufferSize () const
void	setMarkExcess (int16_t markExcess_)
	Sets the markExcess, a number (possibly negative) to be subtracted from the on-durations and added to the off.durations. More...
int16_t	getMarkExcess () const
	Gets the markExcess, a number (possibly negative) to be subtracted from the on-durations and added to the off.durations. More...

Static Public Attributes
static const milliseconds_t	defaultBeginningTimeout = 2000U
static const milliseconds_t	defaultEndingTimeout = 30U
static const size_t	defaultCaptureLength = 100U

Protected Member Functions
	IrReader (size_t bufSize_)
	Constructs an IrReader with buffersize bufSize_, possibly increased to be even. More...
	IrReader ()
virtual	~IrReader ()

Static Protected Member Functions
static unsigned int	forceEven (unsigned int x)

Protected Attributes
milliseconds_t	beginningTimeout
milliseconds_t	endingTimeout
size_t	bufferSize
int16_t	markExcess
	Microseconds subtracted from pulses and added to gaps. More...
boolean	timeouted
	True if last receive ended with a timeout. More...

Detailed Description

Abstract base class for all IR readers, capturing or receiving.

It should also serve as an interface description, allowing for received data to be printed and decoded.

Definition at line 30 of file IrReader.h.

Constructor & Destructor Documentation

IrReader::IrReader ( size_t  bufSize_ )

inlineprotected

Constructs an IrReader with buffersize bufSize_, possibly increased to be even.

Parameters

bufSize_

Definition at line 57 of file IrReader.h.

IrReader::IrReader ( )

inlineprotected

Definition at line 60 of file IrReader.h.

virtual IrReader::~IrReader ( )

inlineprotectedvirtual

Definition at line 63 of file IrReader.h.

Member Function Documentation

virtual void IrReader::disable ( )

inlinevirtual

Stop reception of IR data.

Reimplemented in IrReceiverSampler, and IrReceiverPoll.

Definition at line 80 of file IrReader.h.

void IrReader::dump ( Stream &  stream ) const

virtual

Prints a textual representation of the received data to the Stream supplied.

Parameters

stream

Stream to which to print

Reimplemented in IrWidget.

Definition at line 21 of file IrReader.cpp.

virtual void IrReader::enable ( )

inlinevirtual

Start reception of IR data.

Reimplemented in IrReceiverSampler, and IrReceiverPoll.

Definition at line 74 of file IrReader.h.

static unsigned int IrReader::forceEven ( unsigned int  x )

inlinestaticprotected

Definition at line 49 of file IrReader.h.

virtual milliseconds_t IrReader::getBeginningTimeout ( ) const

inlinevirtual

Reimplemented in IrReceiverSampler, and IrReceiverPoll.

Definition at line 135 of file IrReader.h.

unsigned int IrReader::getBufferSize ( ) const

inline

Definition at line 139 of file IrReader.h.

virtual size_t IrReader::getDataLength ( ) const

pure virtual

Returns the number of collected durations.

Returns

number durations

Implemented in IrReceiverSampler, IrWidget, IrSequenceReader, and IrReceiverPoll.

virtual microseconds_t IrReader::getDuration ( unsigned int  index ) const

pure virtual

Returns the index-th duration, if possible.

Parameters

index

index of duration

Returns

requested duration

Implemented in IrReceiverSampler, IrWidget, IrSequenceReader, and IrReceiverPoll.

virtual milliseconds_t IrReader::getEndingTimeout ( ) const

inlinevirtual

Reimplemented in IrReceiverSampler, IrWidget, and IrReceiverPoll.

Definition at line 127 of file IrReader.h.

int16_t IrReader::getMarkExcess ( ) const

inline

Gets the markExcess, a number (possibly negative) to be subtracted from the on-durations and added to the off.durations.

Returns

markExcess

Definition at line 157 of file IrReader.h.

virtual boolean IrReader::isEmpty ( ) const

inlinevirtual

Definition at line 119 of file IrReader.h.

virtual boolean IrReader::isReady ( ) const

pure virtual

Returns true if there is collected data.

Returns

status

Implemented in IrReceiverSampler, IrWidget, IrSequenceReader, and IrReceiverPoll.

virtual void IrReader::receive ( )

pure virtual

Convenience function: enable, wait until data is collected or timeout has occured, disable.

Implemented in IrWidget, IrReceiver, and IrSequenceReader.

virtual void IrReader::reset ( )

inlinevirtual

Reimplemented in IrReceiverSampler, IrWidget, and IrReceiverPoll.

Definition at line 67 of file IrReader.h.

virtual void IrReader::setBeginningTimeout ( milliseconds_t  timeOut )

inlinevirtual

Reimplemented in IrReceiverSampler, and IrReceiverPoll.

Definition at line 131 of file IrReader.h.

virtual void IrReader::setEndingTimeout ( milliseconds_t  timeOut )

inlinevirtual

Reimplemented in IrReceiverSampler, IrWidget, and IrReceiverPoll.

Definition at line 123 of file IrReader.h.

void IrReader::setMarkExcess ( int16_t  markExcess_ )

inline

Sets the markExcess, a number (possibly negative) to be subtracted from the on-durations and added to the off.durations.

Parameters

markExcess_

possibly negative new value

Definition at line 148 of file IrReader.h.

IrSequence * IrReader::toIrSequence

(

)

const

Generates an IrSequence from the IrReader.

Returns

IrSequence. The user must delete this to avoid memory leaks.

Definition at line 32 of file IrReader.cpp.

Member Data Documentation

milliseconds_t IrReader::beginningTimeout

protected

Definition at line 38 of file IrReader.h.

size_t IrReader::bufferSize

protected

Definition at line 41 of file IrReader.h.

const milliseconds_t IrReader::defaultBeginningTimeout = 2000U

static

Definition at line 33 of file IrReader.h.

const size_t IrReader::defaultCaptureLength = 100U

static

Definition at line 35 of file IrReader.h.

const milliseconds_t IrReader::defaultEndingTimeout = 30U

static

Definition at line 34 of file IrReader.h.

milliseconds_t IrReader::endingTimeout

protected

Definition at line 39 of file IrReader.h.

int16_t IrReader::markExcess

protected

Microseconds subtracted from pulses and added to gaps.

May be negative.

Definition at line 44 of file IrReader.h.

boolean IrReader::timeouted

protected

True if last receive ended with a timeout.

Definition at line 47 of file IrReader.h.

---

The documentation for this class was generated from the following files:

• src/IrReader.h
• src/IrReader.cpp
