element a

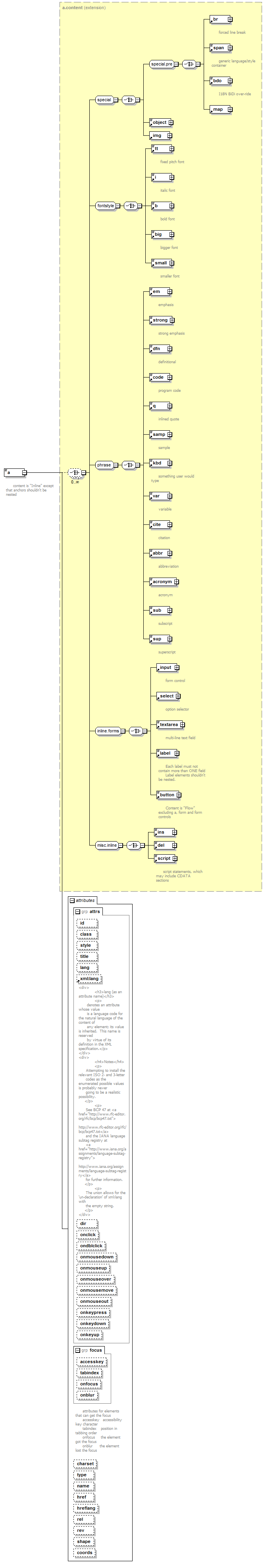

diagram
namespace	http://www.w3.org/1999/xhtml
type	extension of a.content
properties	content  complex mixed  true
children	br span bdo map object img tt i b big small em strong dfn code q samp kbd var cite abbr acronym sub sup input select textarea label button ins del script
used by	complexType  pre.content group  inline
attributes	Name   Type   Use   Default   Fixed   annotation id xs:ID          class xs:NMTOKENS          style StyleSheet          title Text          lang LanguageCode          lang          documentation <div> <h3>lang (as an attribute name)</h3> <p>        denotes an attribute whose value        is a language code for the natural language of the content of        any element; its value is inherited.  This name is reserved        by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>       Attempting to install the relevant ISO 2- and 3-letter       codes as the enumerated possible values is probably never       going to be a realistic possibility.       </p> <p>       See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">        http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>       and the IANA language subtag registry at       <a href="http://www.iana.org/assignments/language-subtag-registry">        http://www.iana.org/assignments/language-subtag-registry</a>       for further information.      </p> <p>       The union allows for the 'un-declaration' of xml:lang with       the empty string.      </p> </div> dir derived by: xs:token          onclick Script          ondblclick Script          onmousedown Script          onmouseup Script          onmouseover Script          onmousemove Script          onmouseout Script          onkeypress Script          onkeydown Script          onkeyup Script          accesskey Character          tabindex tabindexNumber          onfocus Script          onblur Script          charset Charset          type ContentType          name xs:NMTOKEN          href URI          hreflang LanguageCode          rel LinkTypes          rev LinkTypes          shape Shape    rect      coords Coords
annotation	documentation       content is "Inline" except that anchors shouldn't be nested
source	<xs:element name="a">   <xs:annotation>     <xs:documentation>       content is "Inline" except that anchors shouldn't be nested       </xs:documentation>   </xs:annotation>   <xs:complexType mixed="true">     <xs:complexContent mixed="true">       <xs:extension base="a.content">         <xs:attributeGroup ref="attrs"/>         <xs:attributeGroup ref="focus"/>         <xs:attribute name="charset" type="Charset"/>         <xs:attribute name="type" type="ContentType"/>         <xs:attribute name="name" type="xs:NMTOKEN"/>         <xs:attribute name="href" type="URI"/>         <xs:attribute name="hreflang" type="LanguageCode"/>         <xs:attribute name="rel" type="LinkTypes"/>         <xs:attribute name="rev" type="LinkTypes"/>         <xs:attribute name="shape" type="Shape" default="rect"/>         <xs:attribute name="coords" type="Coords"/>       </xs:extension>     </xs:complexContent>   </xs:complexType> </xs:element>

attribute a/@charset

type	Charset
properties	isRef  0
source	<xs:attribute name="charset" type="Charset"/>

attribute a/@type

type	ContentType
properties	isRef  0
source	<xs:attribute name="type" type="ContentType"/>

attribute a/@name

type	xs:NMTOKEN
properties	isRef  0
source	<xs:attribute name="name" type="xs:NMTOKEN"/>

attribute a/@href

type	URI
properties	isRef  0
source	<xs:attribute name="href" type="URI"/>

attribute a/@hreflang

type	LanguageCode
properties	isRef  0
source	<xs:attribute name="hreflang" type="LanguageCode"/>

attribute a/@rel

type	LinkTypes
properties	isRef  0
source	<xs:attribute name="rel" type="LinkTypes"/>

attribute a/@rev

type	LinkTypes
properties	isRef  0
source	<xs:attribute name="rev" type="LinkTypes"/>

attribute a/@shape

type	Shape
properties	isRef  0 default  rect
facets	Kind  Value  annotation  enumeration  rect  enumeration  circle  enumeration  poly  enumeration  default
source	<xs:attribute name="shape" type="Shape" default="rect"/>

attribute a/@coords

type	Coords
properties	isRef  0
facets	Kind  Value  annotation  pattern  [-+]?(\d+|\d+(\.\d+)?%)(,\s*[-+]?(\d+|\d+(\.\d+)?%))*
source	<xs:attribute name="coords" type="Coords"/>
